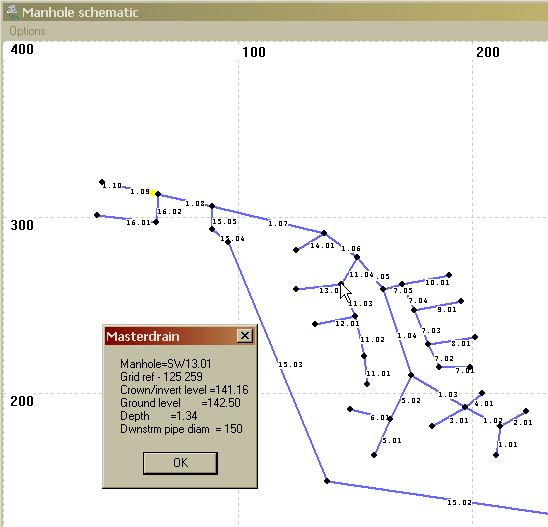

A sized system, complete with grid co-ordinates, may be displayed as a schematic. The example below shows the two-dimensional schematic. Clicking on the black circles will return the manhole data for that point. Likewise, clicking on a pipe run will show that data.
A line diagram type of display is used to show a scheme in 3D. his image may be rotated vertically by 90 degress, and east-west by 90 degrees
