The sized data file can be graphically analysed using this option. The choices are sectional areas, lengths, gradients, diameters. proportional velocities and proportional areas.

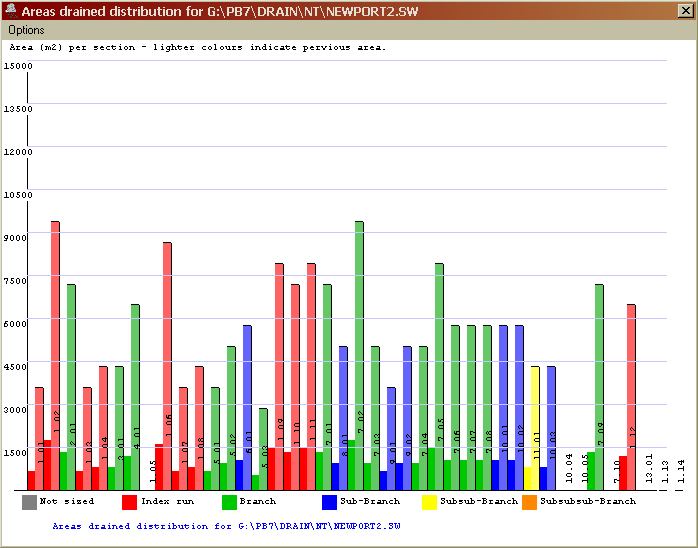

The image below shows the area drained by each section:-

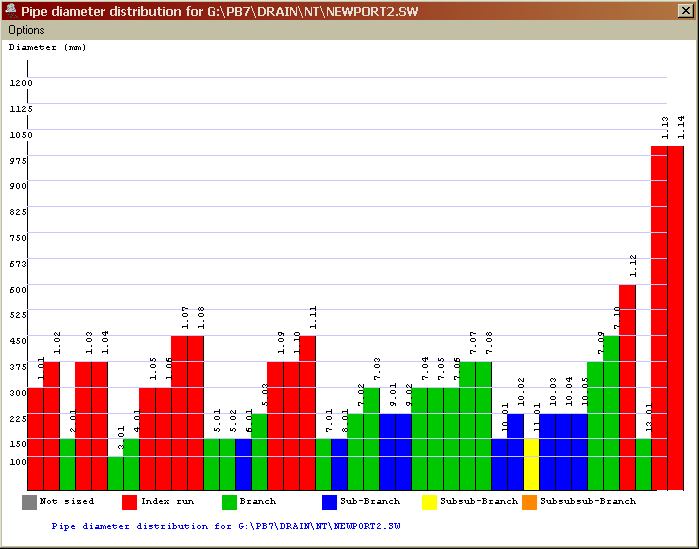

The image below shows the pipe diameters of each section. Note that the last two sections are enlarged to provide in line storage.
